Product Overview

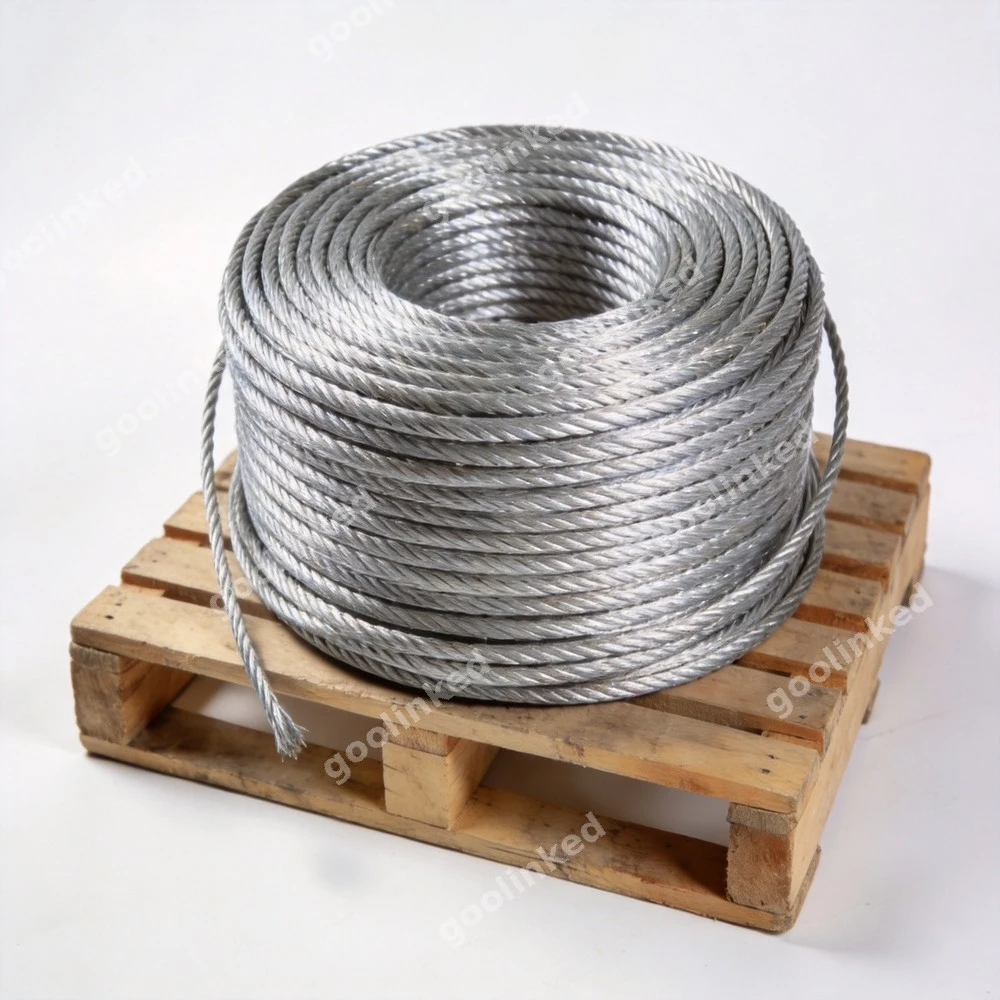

Galvanized wire ropes feature zinc-coated wires providing superior corrosion resistance for outdoor and marine environments. The hot-dip galvanizing process creates a metallurgical bond between zinc and steel, offering long-lasting protection against rust and corrosion.

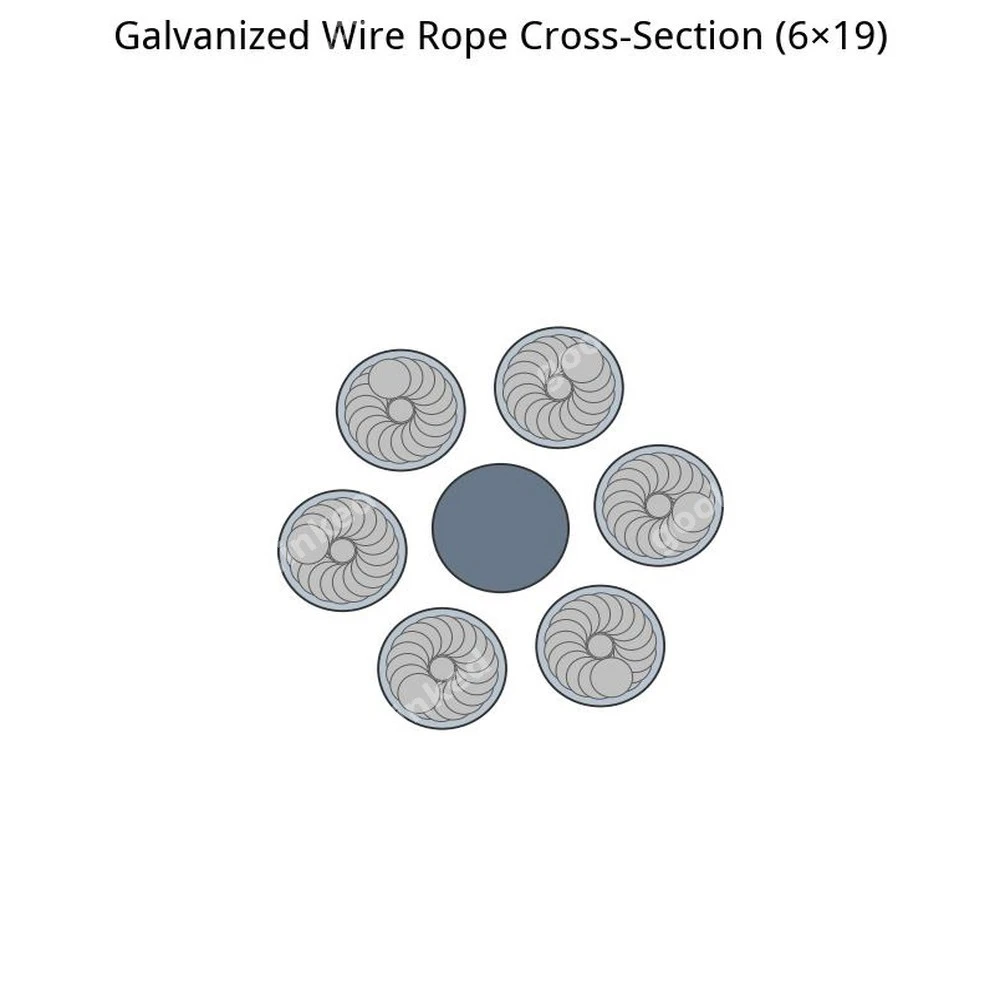

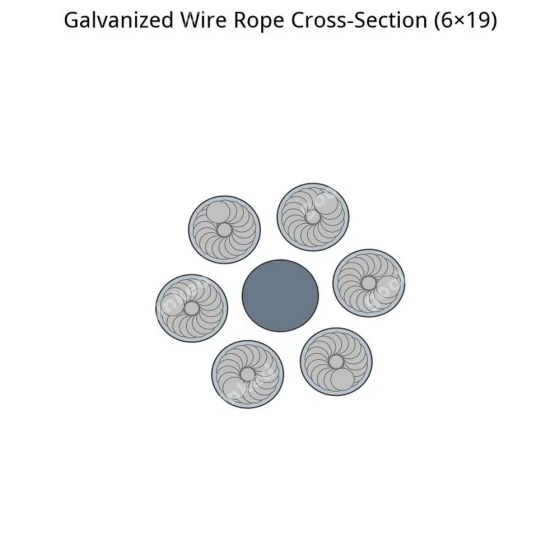

Cross-Section Diagram
Construction & Design
Available in multiple constructions (6×7, 6×19, 6×36, 7×19) with hot-dip galvanized individual wires before stranding. The zinc coating thickness ranges from Class A (thick) to Class B and C, with Class A providing maximum corrosion protection.
Key Features
- Hot-dip galvanized for maximum corrosion resistance
- Zinc coating classes A/B/C available
- Suitable for outdoor and marine environments
- Extended service life in corrosive conditions
- Available in all standard constructions
Technical Specifications
| Diameter (mm) | Weight (kg/100m) | Min. Breaking Force (kN) | Zinc Class |
| 6 | 15.2 | 21.6 | Class A |
| 8 | 27.0 | 38.4 | Class A |
| 10 | 42.2 | 60.0 | Class A |
| 12 | 60.7 | 86.4 | Class A |
| 14 | 82.7 | 118 | Class A |
| 16 | 108 | 154 | Class A |
| 18 | 137 | 195 | Class A |
| 20 | 169 | 241 | Class A |
| 22 | 204 | 291 | Class A |
| 24 | 243 | 346 | Class A |
Mechanical Properties
| Property | Value |
| Tensile Strength Grade | 1570 / 1770 / 1960 MPa |
| Zinc Coating | Hot-dip galvanized, Class A/B/C |
| Zinc Weight (Class A) | 215-305 g/m² (varies by wire diameter) |
| Salt Spray Resistance | ≥ 500 hours (Class A) |

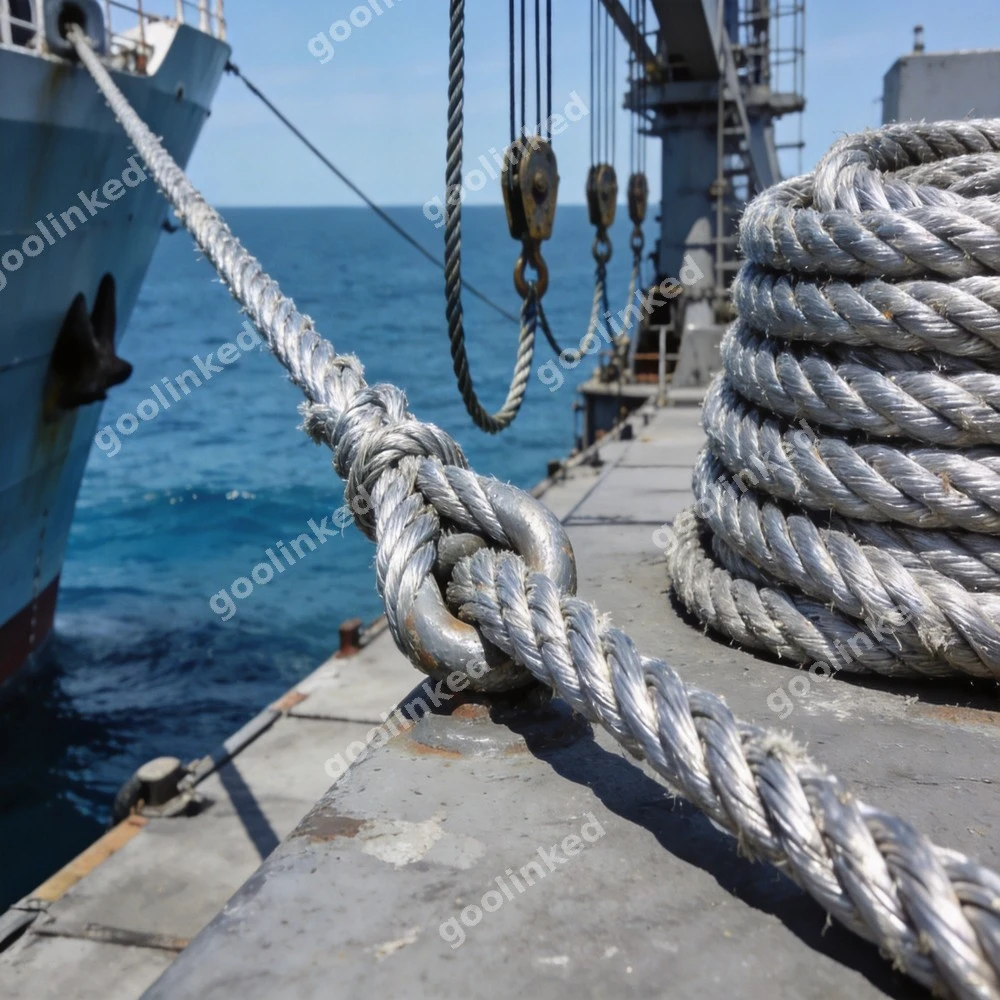

Applications
- Marine mooring and towing lines
- Ship rigging and standing lines
- Offshore platform and rigging
- Bridge and structural guy wires
- Agricultural fencing and vineyard trellis
- Outdoor construction and utility applications
Applicable Standards
GB/T 20118, ISO 2408, EN 12385-4, ASTM A1023
