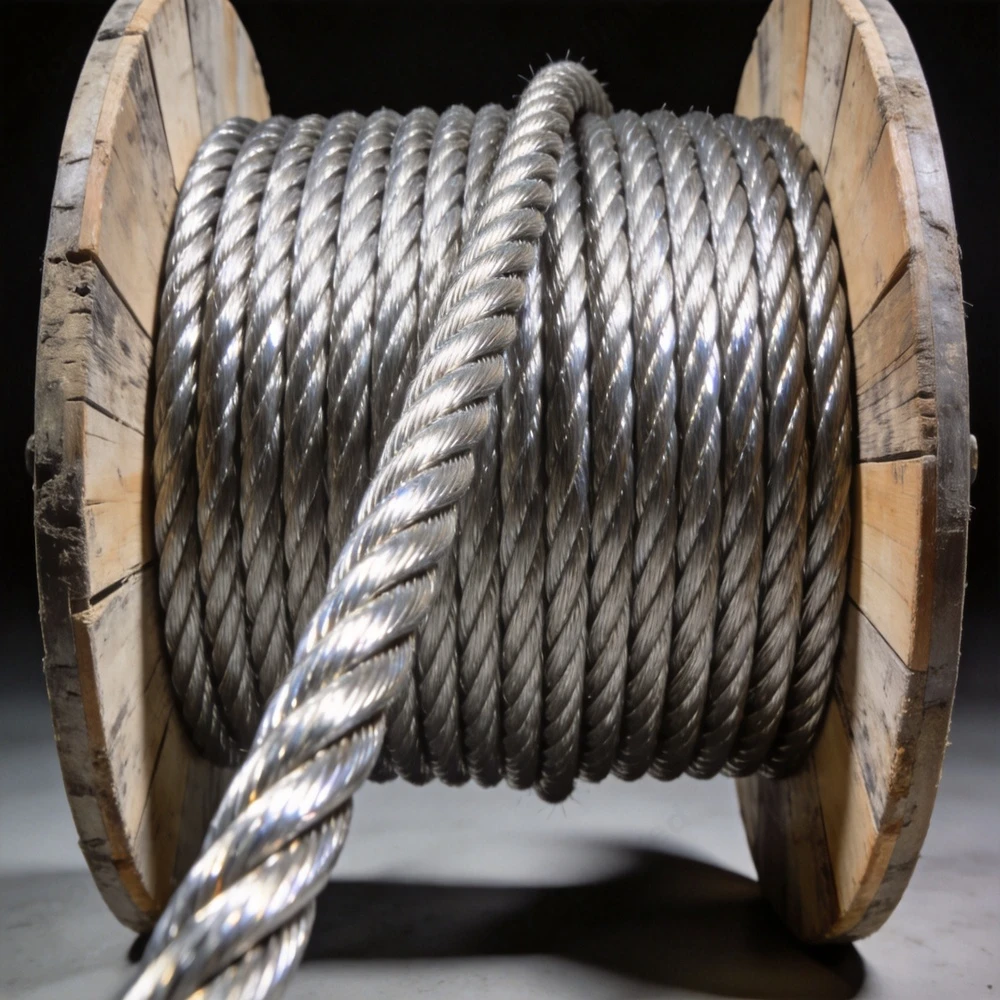

6×36 Series Wire Rope

Product Overview

The 6×36 wire rope series features 6 outer strands with a Warrington-Seale (WS) pattern, offering superior flexibility and fatigue resistance. This construction is ideal for multi-layer winding, crane main hoist, and heavy-duty lifting applications where the rope must bend frequently around sheaves and drums.



Construction & Design

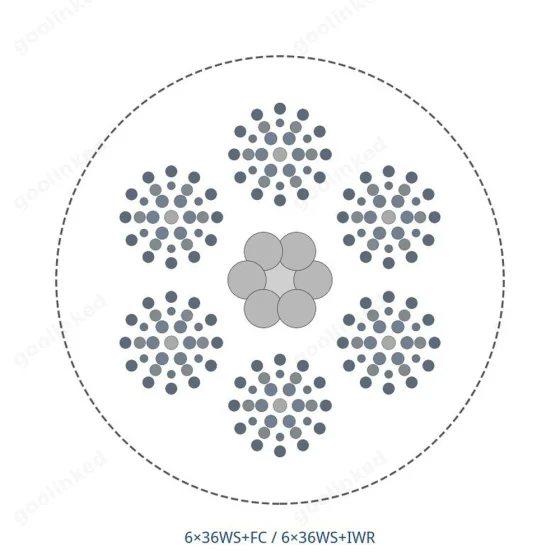

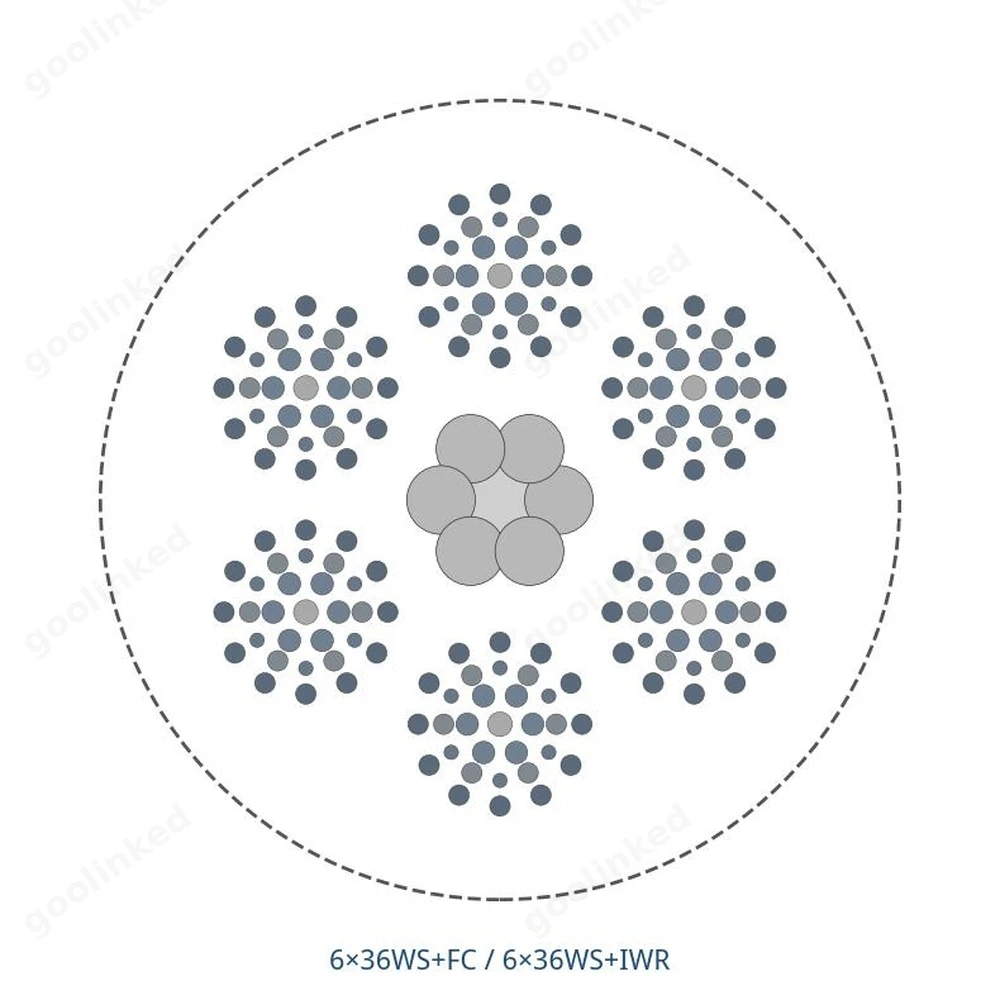

6 strands × Warrington-Seale wire pattern + FC (Fiber Core) or IWRC (Independent Wire Rope Core). The WS pattern combines inner small wires for flexibility with outer large wires for wear resistance, providing the best balance of bending performance and service life.



Key Features

• Superior flexibility for tight sheave applications
• Excellent fatigue resistance — ideal for repeated bending
• Warrington-Seale pattern optimizes wear life and bend performance
• Available with FC or IWRC core options
• Galvanized and bright finish options
• Compliant with GB/T 8918, ISO 2408, and EN 12385 standards



Technical Specifications

Construction	Core	Dia. Range (mm)	Tensile (MPa)	Standard
6×36WS+FC	Fiber Core	8–60	1570–1960	GB/T 8918
6×36WS+IWR	Steel Core	8–60	1570–1960	GB/T 8918
6×29Fi+FC	Fiber Core	8–60	1570–1960	GB/T 8918
6×29Fi+IWR	Steel Core	8–60	1570–1960	GB/T 8918
6×41WS+IWR	Steel Core	32–70	1570–1960	GB/T 8918



Dimensions & Weight (6×36WS+IWR)

Dia. (mm)	Weight (kg/100m)	MBF 1570 (kN)	MBF 1770 (kN)	MBF 1960 (kN)
10	43.5	62.1	70.0	77.5
12	62.6	89.4	100.8	111.6
14	85.3	121.8	137.3	152.0
16	111.4	159.0	179.3	198.5
18	141.0	201.3	227.0	251.3
20	174.1	248.5	280.2	310.2
22	210.7	300.8	339.2	375.5
24	250.7	357.9	403.6	446.9
26	294.3	420.6	474.4	525.3
28	341.3	487.8	550.2	609.3
30	391.8	559.7	631.3	699.1
32	445.8	636.9	718.5	795.7
36	564.2	805.8	909.0	1006.6
40	697.5	996.2	1123.8	1244.5



Mechanical Properties

Property	Value
Tensile Strength Grade	1570 / 1670 / 1770 / 1870 / 1960 MPa
Lay Direction	ZS / SZ / ZZ / SS
Pre-forming	Pre-formed
Lubrication	Core-impregnated, through-dressed
Safety Factor	5:1 (standard), 6:1 or higher available
Bending Fatigue	Excellent — designed for multi-layer winding

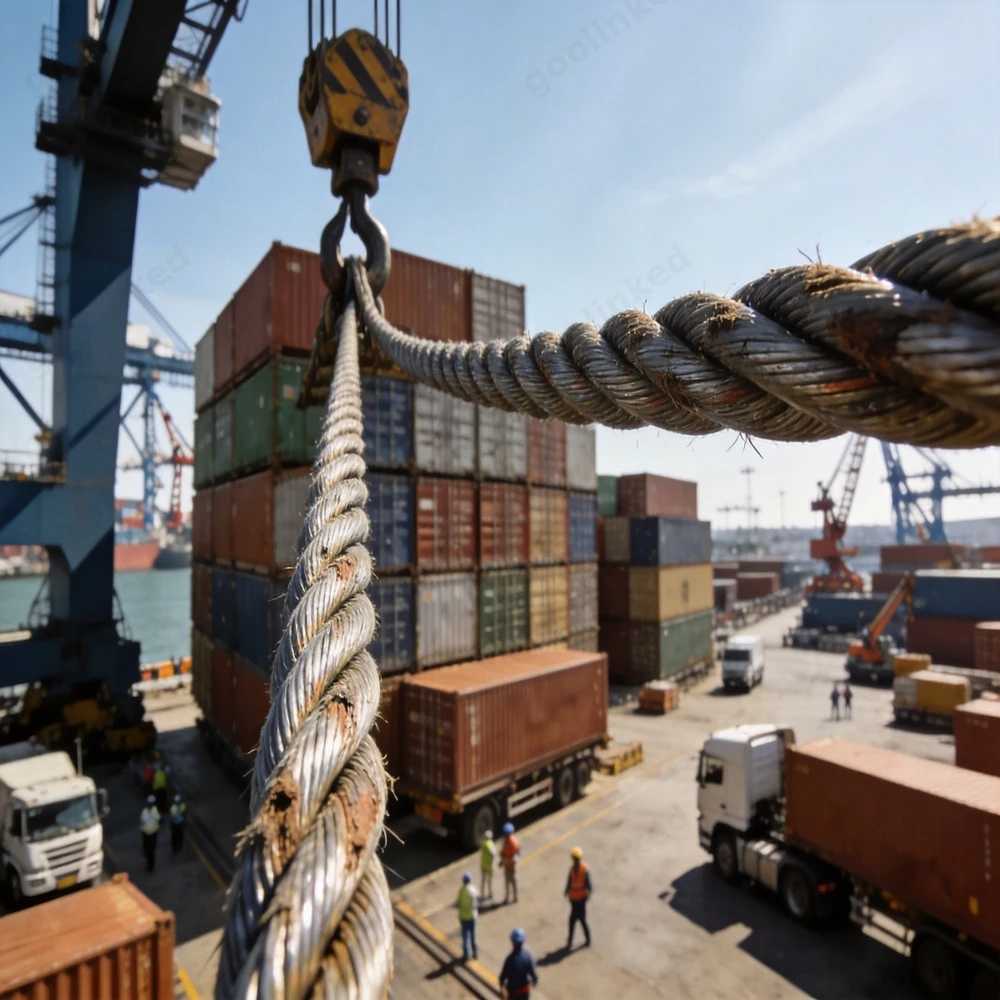

Applications

• Crane main hoist and auxiliary hoist
• Multi-layer drum winding applications
• Heavy-duty lifting and rigging
• Shipyard and offshore operations
• Mining hoist ropes
• Construction and infrastructure
• Logging and skidding operations
• Material handling equipment



Surface Treatment Options

• Bright (ungalvanized) — general indoor use
• Hot-dip galvanized — outdoor and marine (Class A/B/C zinc coating)
• Electro-galvanized — light corrosion protection
• Stainless steel (304/316) — maximum corrosion resistance



Certificates & Compliance

• ISO 9001:2015 Quality Management System
• CE Marking (EU conformity)
• BV, DNV, ABS, LR type approval available
• Material Test Certificate EN 10204 3.1
• Third-party inspection accepted



Packaging & Delivery

Standard packaging: wooden reel, coil, or as per customer requirement. Each reel clearly marked with rope diameter, construction, length, and batch number. Custom packaging and OEM labeling available.
